SIGTRAN

By -
SIGTRAN (Signalling Transport) is a set of protocols defined to transport SS7 messages over IP networks.


SIGTRAN allows IP networks to inter-worked with the Public switched Telephone Network (PSTN) and vice-versa.




The Sigrtan protocol stack based on following components:




- A Standard IP stack.
- A common signalling transport protocol, that we called as SCTP (stream transmission Protocol)
- Adaptation Layer: These are the Adaptation layers for MTP2, MTP3 and ISUP, called M2PA, M2UA, M3UA, and SUA.

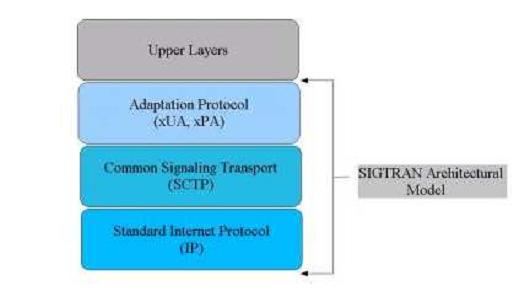

SIGTRAN Stack:
